Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV,CE
Model Number: ANS-RCD-32A
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: standard export package
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs a day
Product Name: |
Residual Current Circuit Breaker |
Rated Current: |
63A |
Poles: |
4Pole (3P+N) |
Rated Voltage: |
4Pole: 400V/415V |
Rated Frequency: |
50/60Hz |
Rated Residual Operation Current: |
30mA |
Short-circuit Current Inc: |
Ic 10000A |
Standard: |
IEC 61008-1, IEC 62423 |
DC: |
DC 6mA |
Product Name: |
Residual Current Circuit Breaker |
Rated Current: |
63A |
Poles: |
4Pole (3P+N) |
Rated Voltage: |
4Pole: 400V/415V |
Rated Frequency: |
50/60Hz |
Rated Residual Operation Current: |
30mA |
Short-circuit Current Inc: |
Ic 10000A |
Standard: |
IEC 61008-1, IEC 62423 |
DC: |
DC 6mA |

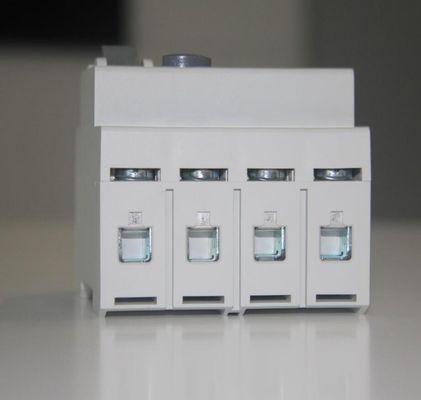

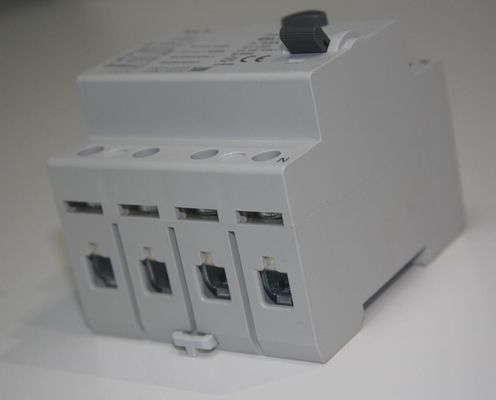

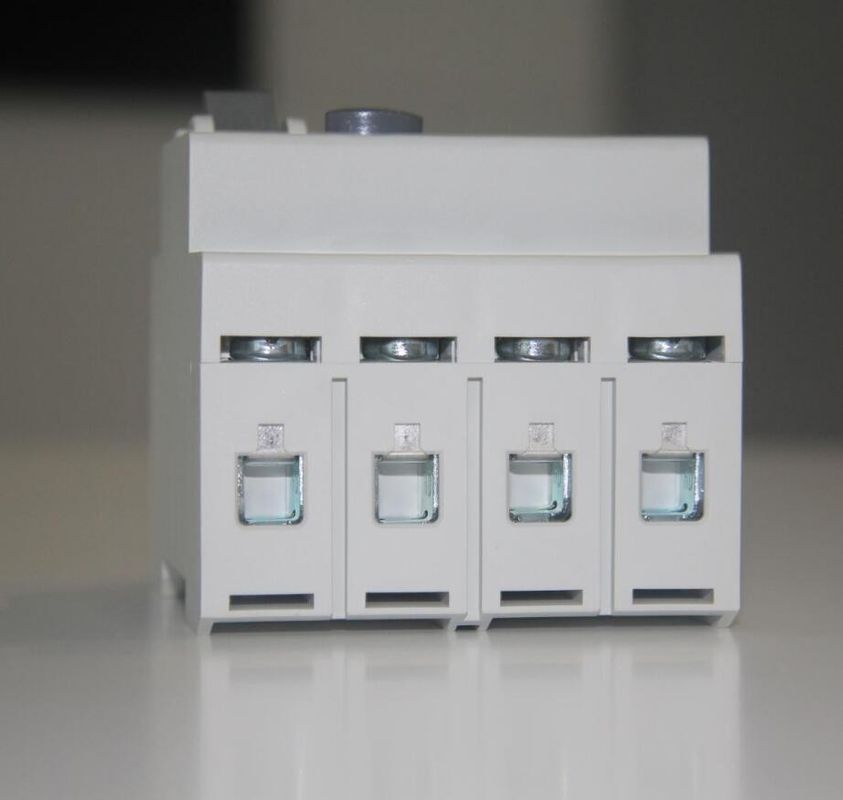

10KA 63A 415V B Type RCCB with DC 6mA Protection Residual Current Circuit Breaker
Technical Data
Mode | Electromagnetic | ||||||||
Type(wave form of the earth leakage sensed) Rated current In |
B 25,40,63A |
||||||||
Poles | 2P,4P | ||||||||
Rated voltage Ue | 2P 240V~, 4P 415V~ | ||||||||
Insulation voltage Ui | 500V | ||||||||
Rated frequency | 50/60Hz | ||||||||
Rated residual operation current(I△n) | 30mA | ||||||||
Rated residual operating current(I△dc) | 6mA | ||||||||
Rated residual making and breaking capacity (I△m) | 500A(In≤40A), 10In(In>40A) | ||||||||
Short-circuit current Inc= I△c | 10,000A 10000 | ||||||||
Break time under I△n Rated impulse withstand voltage(1.5/50) Uimp | ≤0.1s 4000V | ||||||||
Dielectric test voltage at ind.Freq. for 1min | 2.5kV | ||||||||
Electrical life | 2,000 Cycles | ||||||||
Mechanical life | 4,000 Cycles |
Installation
Contact position indicator | Yes | ||||||||
Protection degree Ambient temperature(with daily average≤35℃) |
IP20 -5℃~+40℃ |
||||||||
Storage temperature | -25℃~+70℃ | ||||||||
Terminal connection type | Cable/Pin-type busbar/U-type busbar | ||||||||
Terminal size top/bottom for cable | 35mm2 18-3AWG | ||||||||
Terminal size top/bottom for busbar | 35mm2 18-3AWG | ||||||||
Tightening torque | 2.5Nm 22In-lbs | ||||||||
Mounting | On DIN rail EN60715(35mm) by means of fast clip device | ||||||||
Connection | Power supply in both directions |
Lagging Angle 0° |
I△n>0.01A 0.35I△n≤I△≤1.4I△n |
I△n≤0.01A 0.35I△n≤I△≤2I△n |
|||||||||||||||||||||||||||||
90° | 0.25I△n≤I△≤1.4I△n | 0.25I△n≤I△≤2I△n | |||||||||||||||||||||||||||||
135° | 0.11I△n≤I△≤1.4I△n | 0.11I△n≤I△≤2I△n |
Certification:TUV
