Highlight:
                                                                                                                                                                                                                                                                                                                                                MCB RCD RCCB Circuit Breaker, 2P4P 40A RCCB Circuit Breaker 2000 Cycles, AC 30mA MCB RCD Circuit Breaker


Product Name:	RCCB Circuit Breaker	Rated Current:	40A
AC:	30mA	Rated Voltage:	4Pole: 400V/415V
Rated Frequency:	50/60Hz	DC:	6mA
Short-circuit Current Inc:	Ic 10000A	Standard:	IEC 61008-1, IEC 62423
Insulation VoltageUi:	500V

Product Name:	RCCB Circuit Breaker
Rated Current:	40A
AC:	30mA
Rated Voltage:	4Pole: 400V/415V
Rated Frequency:	50/60Hz
DC:	6mA
Short-circuit Current Inc:	Ic 10000A
Standard:	IEC 61008-1, IEC 62423
Insulation VoltageUi:	500V

2P / 4P 40A RCCB Circuit Breaker AC 30mA Electrical Life 2000 Cycles

Breaker Rcd RCCB Residual Current Device Circuit Breaker 40A with DC 6mA Protection RCCB Circuit Breaker

Technical Data

Mode						Electromagnetic
Type(wave form of the earth leakage sensed) Rated current In						B25,40,63A
Poles						2P,4P
Rated voltage Ue						2P 240V~, 4P 415V~
Insulation voltage Ui						500V
Rated frequency						50/60Hz
Rated residual operation current(I△n)						30mA
Rated residual operating current(I△dc)						6mA
Rated residual making and breaking capacity (I△m)						500A(In≤40A), 10In(In＞40A)
Short-circuit current Inc= I△c						10,000A 10000
Break time under I△n Rated impulse withstand voltage(1.5/50) Uimp						≤0.1s 4000V
Dielectric test voltage at ind.Freq. for 1min						2.5kV
Electrical life						2,000 Cycles
Mechanical life						4,000 Cycles

Installation

Contact position indicator						Yes
Protection degree Ambient temperature(with daily average≤35℃)						IP20 -5℃~+40℃
Storage temperature						-25℃~+70℃
Terminal connection type						Cable/Pin-type busbar/U-type busbar
Terminal size top/bottom for cable						35mm2 18-3AWG
Terminal size top/bottom for busbar						35mm2 18-3AWG
Tightening torque						2.5Nm 22In-lbs
Mounting						On DIN rail EN60715(35mm) by means of fast clip device
Connection						Power supply in both directions

Tripping Current Range

Lagging Angle
0°

I△n＞0.01A
0.35I△n≤I△≤1.4I△n

I△n≤0.01A
0.35I△n≤I△≤2I△n

90°

0.25I△n≤I△≤1.4I△n

0.25I△n≤I△≤2I△n

135°

0.11I△n≤I△≤1.4I△n

0.11I△n≤I△≤2I△n

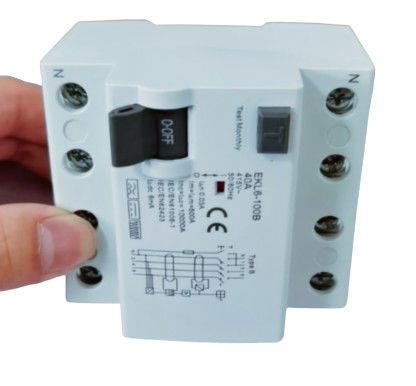

2P / 4P 40A RCCB Circuit Breaker AC 30mA Electrical Life 2000 Cycles 0

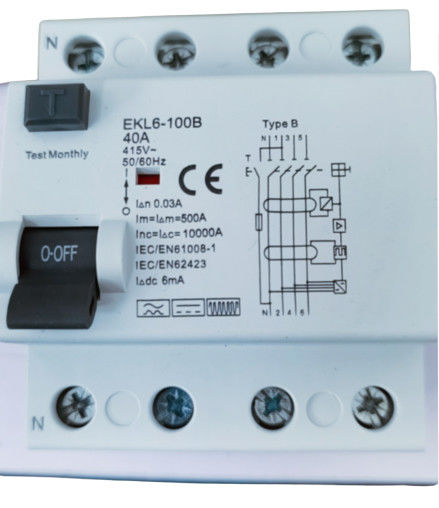

2P / 4P 40A RCCB Circuit Breaker AC 30mA Electrical Life 2000 Cycles 1

Application

The function of lightning and surge protectionsystemsisto protect the devices,functionalisolations and overvoltage-sensitive consumerequipments ofenergy distributionsystemsagainst all lightning and overvoltage
damages.whole building;the outdoor lightningprotection system is generally notsufficienttoeliminate suchmalfunctions.At most of types,thedefected protection devicecan be made
operative again by changing the damaged insert;these variants are also equipped with bothopticaloperation signaland auxiliary status contact.

Certification:TUV

2P / 4P 40A RCCB Circuit Breaker AC 30mA Electrical Life 2000 Cycles 2
