Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV,CE,RoHs, REACH
Model Number: ANSAG-T1-T2-32A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: standards export package
Delivery Time: 20-30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Supply Ability: 1000pcs one day

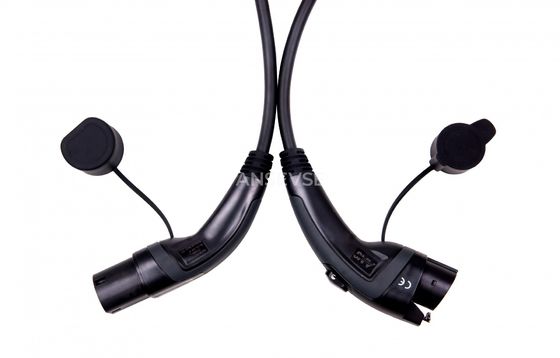

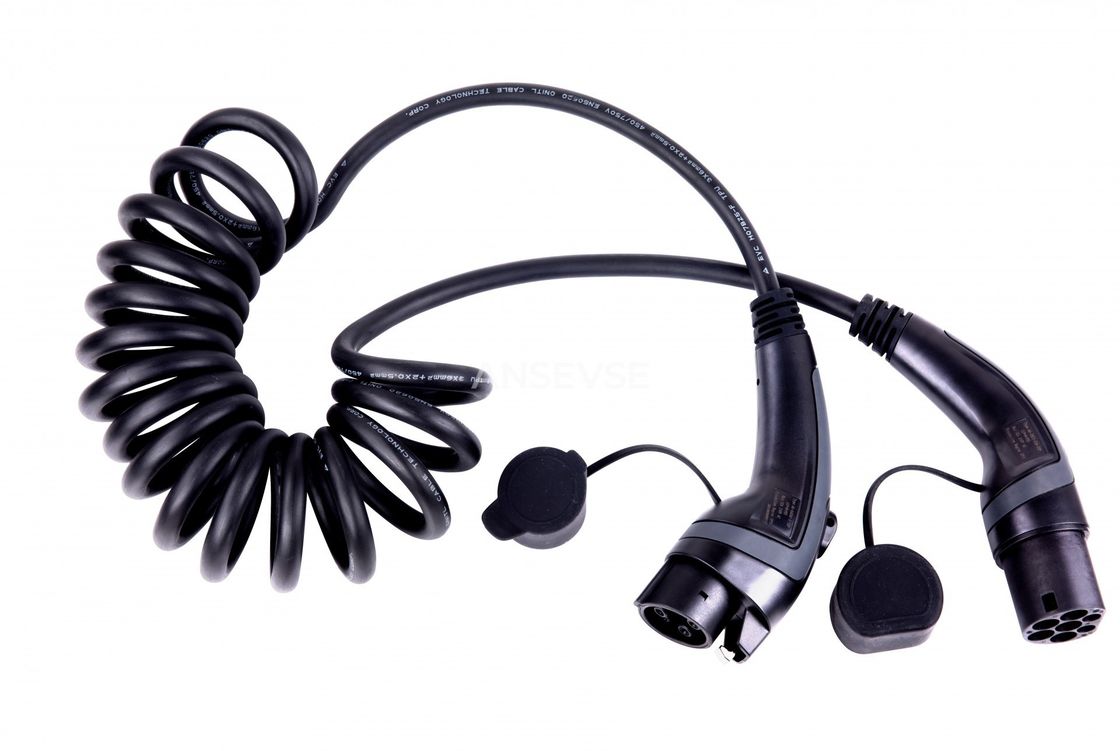

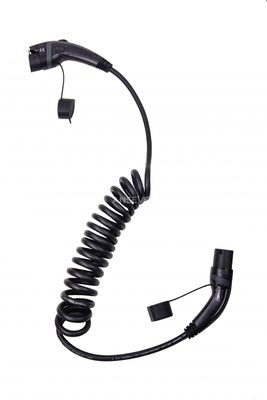

Product Name: |
Type 1 To Type 2 EV Charging Cable |
Amps: |
32A |
Charging Mode: |
Mode 3 Ev Charging Cable |
Connector Standard: |
Type 1 To Type 2 |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 SAE J772 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
Product Name: |
Type 1 To Type 2 EV Charging Cable |
Amps: |
32A |
Charging Mode: |
Mode 3 Ev Charging Cable |
Connector Standard: |
Type 1 To Type 2 |
Length: |
5M |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 SAE J772 |
Grounding: |
Standard Grounding |
Warranty: |
24 Months |
Phase: |
1phase |
| ProductModel: | ANSAG-T1-T2-32A | |
| Product Type | Type 2 to Type 2 ev charging cable | |
| Stardard: | IEC 62196-2 | |
| Rated Voltage: | AC250V | |
|
Rated Current: |
32A | |
| Withstanding voltage: | 2000V | |
| Working temperature: | -30℃ to +65℃ | |
| StorageTemperature: | -40℃ to +70℃ | |
| Terminal temperature rise: | <50K | |
| Contact impedance: | 0.5mMax | |
| Protection level: | IP67 | |
|
Certifications: |
TUV CE | |
| Warranty: | 2 years | |
| Plug Colour: | Black, Red, Orange, Yellow, Green, Blue or Customization | |
| Mechanical life: | No-load plug in/pull out>10000 times | |
| Insertion and Extration Force: | 45N<F<100N | |
|
Impato fex ternal force: |
Can afford 1m drop and 2T vehicle run over pressure |
|

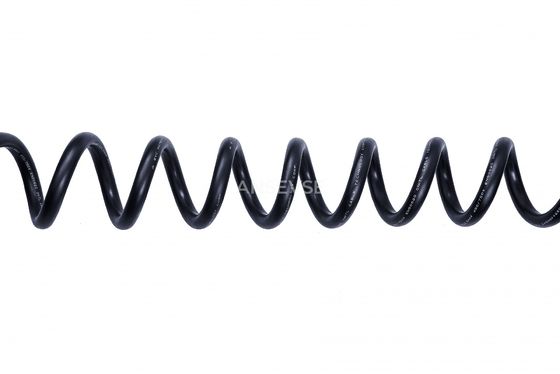

| Part name | Material | Supplier |
| Cable | PUR (TPU) | HUNTSMAN: A85P4380 |
| Shell of plug | PC+PBT | SABIC:V3900WX |
| Head of plug | PA66+GF25 | DUPONT: FR50 |
Mechanical properties
Mechanical life: no-load plug> 10000
Lmpact of external force:can afford 1 m drop and 2t vehicle run over pressure
Applied Materials
Shell material: thermoplastics, flame retardant grade UL94-0
Operating temperature: -30°C~ +50°C
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
