24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE

Model Number: ANSAG-T2-T2

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:
Amps:
16A
Voltage:
250V
Charging Mode:
Mode 3 Ev Charging Cable
Connector Standard:
Type 2 To Type 2
Length:
5M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
1phase
Amps:
16A
Voltage:
250V
Charging Mode:
Mode 3 Ev Charging Cable
Connector Standard:
Type 2 To Type 2
Length:
5M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
1phase

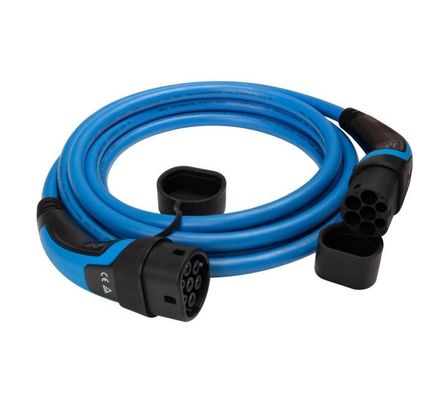

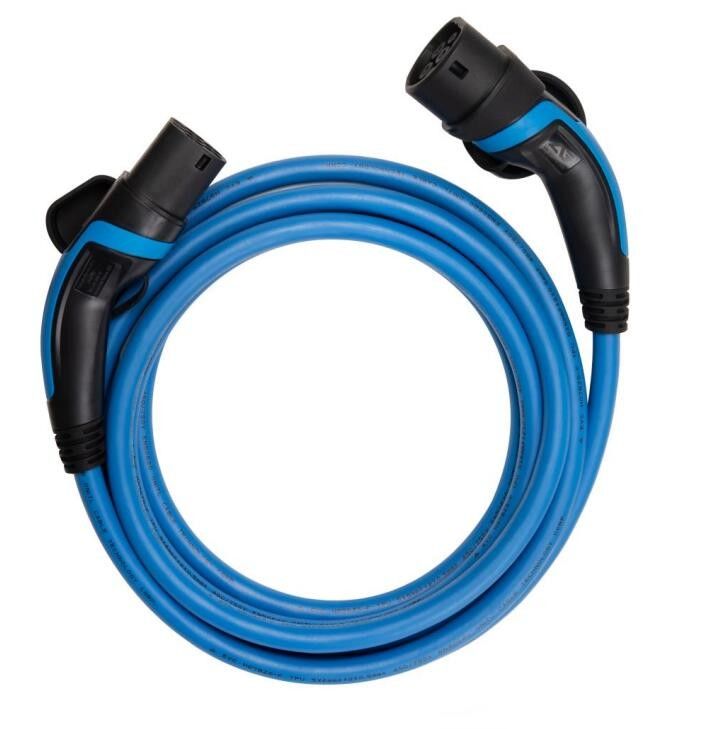

24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable

16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable

Product Features

-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.



ProductModel: ANSAG-T2-T2-16A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC 250V

Rated Current:

16A
Withstanding voltage: 2000V
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax
Protection level: IP67

Certifications:

TUV CE
Warranty: 2 years
Plug Colour: Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure



Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50



24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable 0

24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable 1



24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable 2



Advantage


Conform to the provisions and requirements of IEC 62196-2 2016 2-lle

Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently



XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.

Excellent protection performance, protection grade achieved IP55 ( working condition )



Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )



Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C



Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

24 month warranty 16A 250V type 2 to type 2 electric car charger iec 62196-2 ev plug charging cable 3
