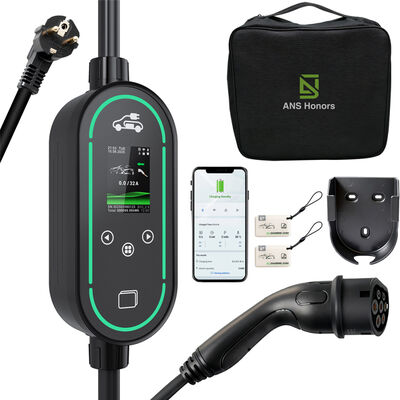

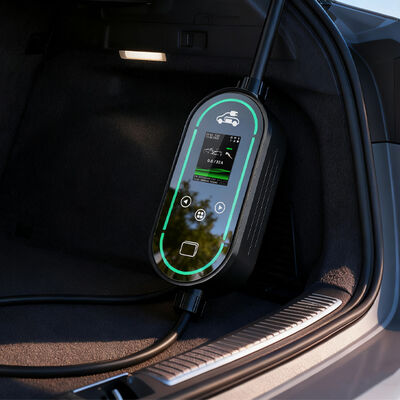

Portable EV Chargers AC230V

Brand Name:	ANS
Model Number:	ANS-EVB
MOQ:	1pcs
Price:	USD90-160
Packaging Details:	Carton box. Carton size: 434321cm
Payment Terms:	T/T, Western Union,Paypal, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/RoHS/REACH/NTL

Product Name:

Portable Ev Charger

Cable Length:

5M Or Customized

Input/Output Voltage:

AC110V/230V

Max.output Current:

16A For 3-Phase

Max.output Power:

1-Phase Up To 11kW(@400V 16A)

Standard:

IEC 62752:2016/COR1:2019

RCD Protection:

Type B Protection

Delay Charging Adjustment:

Protection Degree:

Supply Ability:

600pcs/day

Highlight:

Portable EV Charger 60Hz

Portable EV Chargers AC230V

EN62752 smart ev home charger

Product Description

New Portable EV Charger 2.4 Inch Screen with APP Bluetooth WIFI RFID Card Intelligent Car Charger

This EV portable chargers is type 2 with schuko plug, max 16A, 18 foot cable with ControlBox, a portable and simple charging solution when you travel or you are away from a traditional charging station. The charger allows you to charge your electric/hybrid vehicle's type 2 port via the schuko plug. Equipped with overvoltage, overheat and overcurrent protection. Indicators on the charging station help to show the stages of charging and show errors.

Specification

Input/Output voltage	AC110V/230V/400V
Input frequency	50/60Hz
Max.output power	1-Phase up to 3.7kW(@400V 16A)
Max.output current	16A for 3-Phase
Standard	16A for 1-Phase
Certificate	EN62752

Function and Accessory

LED indicators	30 RGB LED lights
Display Screen	2.4-inch OLED screen
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes

Working environment

Protection degree	IP 67
Operation temperature	-30℃~+60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W

Protection

Over voltage protection	Yes
Under voltage protection	Yes
Overload protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over-temp protection	Yes
Lightning protection	Yes

Mechanical parameters

Charging cable	5m (Standard configuration)
Control box	HxWxD=200mm90mm52mm
Weight	3.0kg
Colour&Materia	Black;Tempered Glass,PC

Portable EV Chargers AC230V 0

Product Information

Portable EV Chargers AC230V 1

Date and Time,Charging time,Consumption(kWh)

Charging voltage / current / power,Total electricity(kWh),Temperature

Multi national language selection

Current adjustable from 6A to 16A in steps of 1A

Appointment for charging (based on week and time)

The screen and LED can automatically turn off according to the set time

APP remote control (Bluetooth and WIFI)

Charging mode (RFID/APP/Password/Plug and Play)

Charging history (up to 30 records)

Load control, adjustable phase number and current (ModBus TCP)

Setting display

Data&time

If the device is used for the first time or has not been used for more

than 20 days, please set the date and time after turning it on.

Incorrect time will affect the scheduled charging function.

Display

The LCD brightness can be adjusted from 10% to 100%.

Turn off the screen after the set delay time without touching the button,

If Off-LED is enabled, the LED will turn off simultaneously with the LCD.

PIN setting

When the PIN is turned on, PIN code needs to be entered to check the

Menu, and the icon on the status display page will light up.

Reservation

Three reservations can be set, reservation can be achieved between

the start and end times. If the stop charging is enabled, charging will

pause upon the stop time; otherwise, it will continue until the battery

is fully charged, and it needs to meet the week setting. After the

reservation is enabled, the icon on the status display page

will light up.

Charge mode

Once Plug & charge is enabled, you can start charging when the vehicle

plug connected, no other authorization required.

Charging history

The device can store up to 30 records, which can

be viewed through the left and right buttons (turn

orange and touch the button).

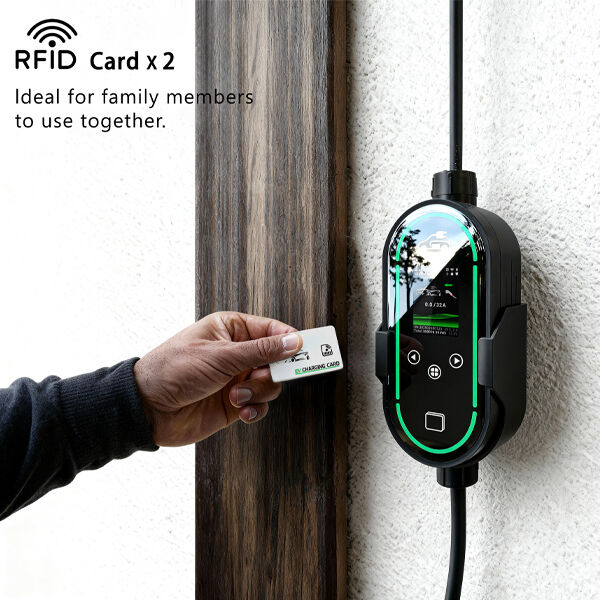

RFID management

RFID can be added or disabled, with maximum of six cards added

and saved.

Wi-Fi

The device needs to be set with wireless name and password through

the APP, and you can also set static IP address. The ChargeID and

URL for OCPP need to be set via the APP.

OCPP setup steps:

1. Successfully bind the charger with APP via Bluetooth.

2. Set up WiFi to successfully connect to the network.

3. Configure OCPP parameters on the settings page using the APP.

4. Enable OCPP on the charger's LCD.

Load balancing

The device can be communicated through ModBus TCP in WiFi mode.

After enabling load balancing, control the current during the charging

process through the enabled communication mode.

Start charging

1 Connect the power plug of the charger to a grounded outlet, wait

for the device to enter charging standby.

2 Couple the vehicle-end connector of the device to the vehicle's

charging port.

3. Enter the reservation page( If reservation is enabled ). Swipe

RFID, use APP or enter PIN to skip countdown for charging.

4 Wait for the vehicle authorization signal, and then enter the

charging mode.

Stop charging

1 Stop the charging process at the controls inside the vehicle, this

releases the lock on vehicle's charging coupling.

2.First disconnect the connector coupled to the vehicle, then unplug

the connector plug from the power socket or the charging station.

APP Overview

Certification

Portable EV Chargers AC230V 10
