Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV
Model Number: ANSYH-P-S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
Product Name: |
16A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |

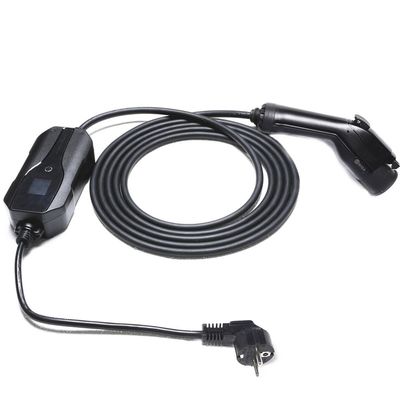

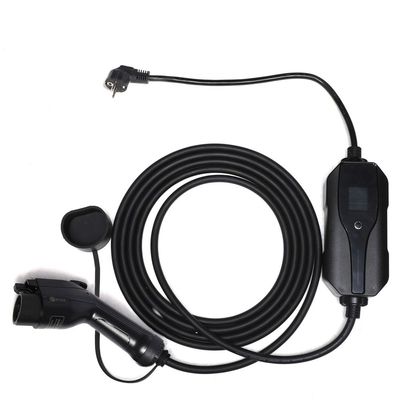

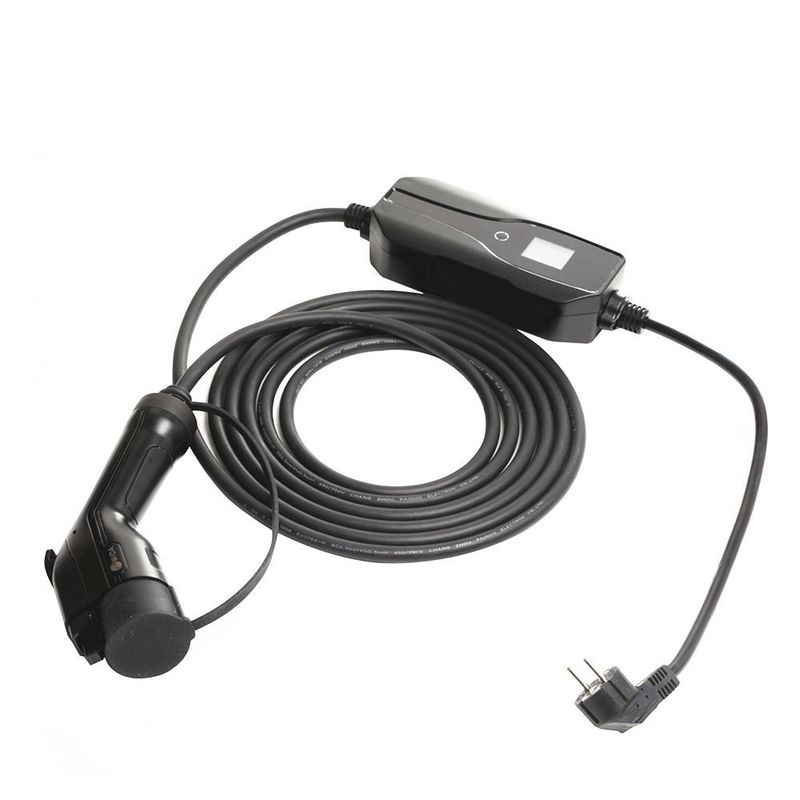

Adjustable Home EV Car Charger IEC 62196-2 type2 Plug 16A 5.5m Charging Cable With Schuko Plug Portable EV Charger
Product Description
|
1 Electric parameter
|
|
|
1.1 Rated Frequency
|
50/60Hz
|
|
1.2 Rated current
|
8/10/13/16A
|
|
1.3 Rated voltage
|
single-phase, 230V±15%, 50/60Hz
|
|
2 Mechnical Parameter
|
|
|
2.1 IP Code
|
IP67
|
|
2.2 Charging Adapter Cable
|
5 meters cable or custom length
|
|
2.3 Dimensions
|
W × D × H = 230 × 93× 62 mm
|
|
2.4 Weight
|
＜5kg
|
|
2.5 Input Plug Standard
|
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
|
|
3 Functional Description
|
|
|
3.1 Charging Control Model
|
Plug and play
|
|
3.2 Display Screen(Optional)
|
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
|
|
3.3 Indicator Light
|
4 LED indicators-Power/ Connection/ Charging/ Fault
|
|
3.4 RCD type
|
Type A
|
|
3.5 Adjustable output current
|
Button options: 8A/10A/13A/16A
|
|
3.6 Preset function
|
Preset charging time trough the button
|
|
3.7 Safety Protection
|
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
|
|
4 Environmental Conditions
|
|
|
4.1 Operational environment
|
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
|
|
4.2 Vibration
|
＜0.5G, no violent vibration and impact
|
|
4.3 Altitude
|
≤2000 meters
|
|
4.4 Storage Temperature
|
-30 ~ 75 ℃ (-22 ~ 167 ℉)
|
|
4.5 Operating Temperature
|
-30 ~ 55 ℃ (-22 ~ 131 ℉)
|
|
4.6 Operating humidity
|
95%RH, no water droplet condensation
|
Product Detail
Fast charging speed】Our 2-stage 8/12/16/20/24/32 A, electric car charger can charge your car faster than other 1-stage chargers. The current in the charging box can be freely switched between 8/12/16/20/24/32 A to meet all your needs. The electric digital screen reflects all the states you want. Note: The current cannot be switched during charging.
Well-designed and easy to use】The 5 m long cable with IEC 62196-2 type female connector can meet your daily charging needs. And our charging case has perfect dimensions (20*9.3*5.1cm), very delicate and portable. If you are travelling and visiting friends and family, you don't need to worry about charging because it can be carried in your car in a professional bag, which is very practical and you only need a Schuko socket (European socket).
High Compatibility] All our products are CE and TÜV certified for quality you can trust. Our electric car chargers are compatible with most electric cars that conform to IEC 62196.
[Maximum Safety] Our EV chargers are made of high strength ABS material for better quality and longer life. Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, waterproof rating IP65 and other protection measures to safely charge your car and avoid fire.

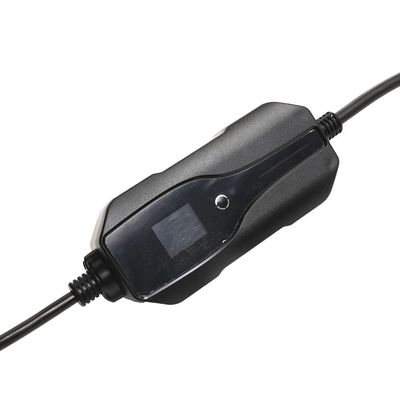

Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW
Features
Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port
Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.
Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
