Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANS-T2STP-16A
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD100-160
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 600pcs/day
Product Name: |
16A Portable Ev Charger |
Cable Length: |
5M Or Customized |
Rated Current: |
8A;10A;13A;16A |
Rated Power: |
3.6kW |
Rated Voltage: |
240V |
Frequency: |
47Hz Or 63Hz |
Operating Temperature: |
-25℃~+55℃ |
Product Name: |
16A Portable Ev Charger |
Cable Length: |
5M Or Customized |
Rated Current: |
8A;10A;13A;16A |
Rated Power: |
3.6kW |
Rated Voltage: |
240V |
Frequency: |
47Hz Or 63Hz |
Operating Temperature: |
-25℃~+55℃ |

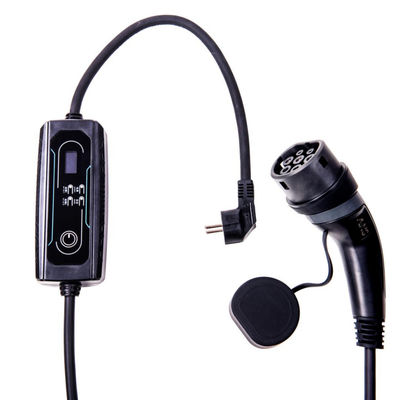

EU type electric vehicle charging equipment 16A 3.6kW portable EV charger with schuko plug
Specification:
|
Item |
Mode 2 EV portable charger |
|
Model |
ANS-T2STP-16A |
|
Install |
Portable, plug and Play |
|
Output Current |

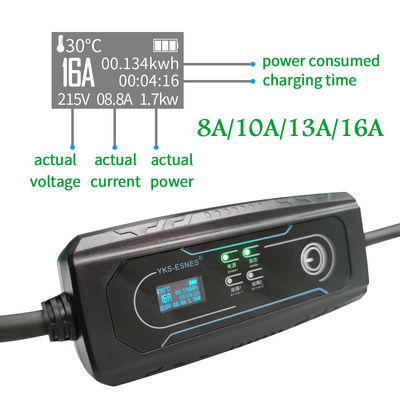

8A /10A/13A/16A(touch screen to change current) |
|
Rated power |
3.6kW Max |
|
Input Voltage AC |
110-250V |
|
International Protection Marking |
IP65 |
|
Safety Protection |
1.Short circuit protection 2.Over and under frequency protection 3. Over Current Protection 4.Leakage Current Protection 5. Over Temperature Protection 6.Overload protection (self-checking recovery) 7. Ground Protection 8.Over voltage and under-voltage protection 9.Lighting Protection |
|
Operating Temperature |
-25℃~+55℃ |
|
Storage Temperature |
-50℃~+85℃ |
|
Dimension |
Control Box:178(L)*80(M)*45mm(H) |
|
Weight |
2.8kg |
|
Standard |
IEC 62752 , IEC 61851 |
|
Carton Measure |
430*430*210MM |
|
No. |
Condition |
Power |
Mode |
Fault 1 |
Fault 2 |
|
1 |
Initial state |
On |
Flash |
Flash |
Flash |
|
2 |
Waiting for connection |
On |
Off |
Off |
Off |
|
3 |
Charging |
On |
Flash |
Off |
Off |
|
4 |
Fully charged |
On |
On |
Off |
Off |
|
5 |
POST(Power On Self Test) failure |
On |
Off |
On |
On |
|
6 |
Abnormal Communication |
On |
Off |
Off |
On |
|
7 |
Overvoltage under voltage |
On |
Off |
On |
Off |
|
8 |
Grounding Failure |
On |
Off |
Off |
Flash |
|
9 |
Overcurrent |
On |
Off |
Flash |
Off |
|
10 |
Leak Electricity |
On |
Off |
Flash |
Flash |
|
11 |
Over-temperature |
On |
On |
On |
On |
Product Instructions
a. Please check if the device is intact and items are in accordance with the packing list when you receive the package. If there are any abnormalities, please contact the sales timely or reject the goods.
b. Power-supply side input cable should be at least 3x2.5mm²(recommended 3x4mm²). It is suggested that the power distribution is done by the professionals.
c. This product is waterproof, but it is not recommended to be used outdoors on rainy days, and don't step on, pull, fold or knot the cable.
d. Ensure charging connector, plug, cable, and control box are free of any abnormalities such as scratches, rusts, cracks, etc.
e. Don't charge if the socket is damaged, rusted, cracked or loosely connected, then contact the professionals to dispose.
f. Wipe with a clean and dry cloth if the plug gets dirty or wet.
g. Ensure power plug and socket are consistent before charging,especially the Current & Voltage.
ANS EVSE, ensure the production of portable charging line are through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance.
Any user due to their improper handling, installation, use and maintenance, secretly negligence or because of natural disasters, lead to products direct damage or cannot be used properly, are out of place in the product warranty.
This warranty does not include the freight returned to the factory maintenance.
The warranty is only valid to the original purchaser and is not transferable.

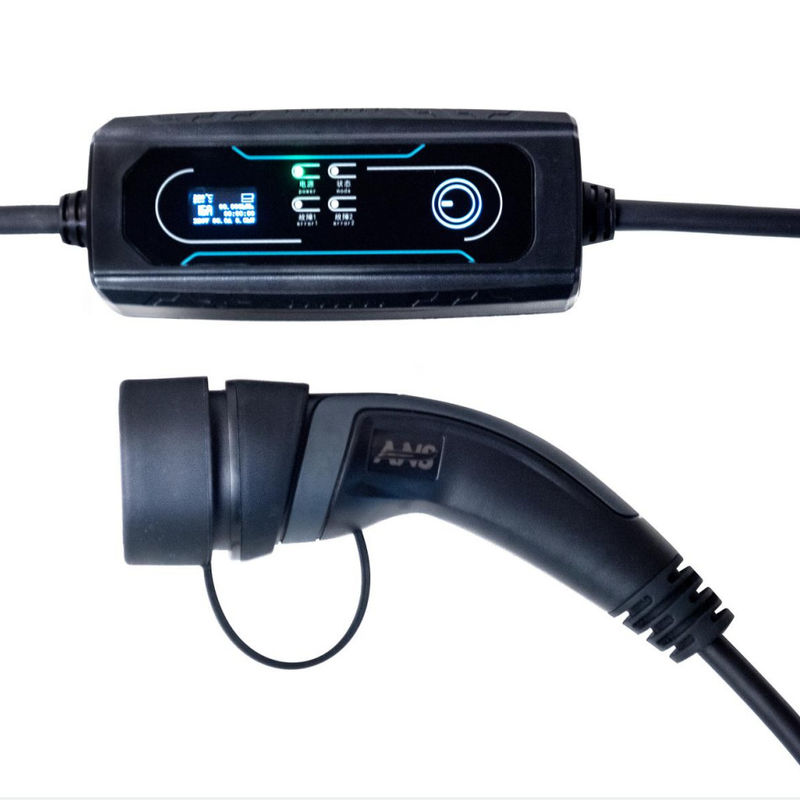

Appearance&Drawings
