Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV, CE
Model Number: ANS-DCT-60kW
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: standard export package
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs one day
Name: |
DC Charging Station |
Charging Interface: |
CCS, CHAdeMO And AC Control Pilot |
Charge Point Protocal: |
OCPP1.6 / OCPP2.0 |
Enclosure Protection AgainstExt Ernal Mechanical Impacts: |
IK10 According To IEC 62262 |
User Authentication: |
Paypal And (or) NFC Card |
Network Interface: |
Ethernet (standard); Wi-Fi, 4G (optional) |
Display: |
9” Touch Screen |
Support Language: |
English (Other Languages Available Upon Request) |
Output Power: |
DC: 60kW AC: 22kW |
Output Rating: |
200V-750V DC |
Name: |
DC Charging Station |
Charging Interface: |
CCS, CHAdeMO And AC Control Pilot |
Charge Point Protocal: |
OCPP1.6 / OCPP2.0 |
Enclosure Protection AgainstExt Ernal Mechanical Impacts: |
IK10 According To IEC 62262 |
User Authentication: |
Paypal And (or) NFC Card |
Network Interface: |
Ethernet (standard); Wi-Fi, 4G (optional) |
Display: |
9” Touch Screen |
Support Language: |
English (Other Languages Available Upon Request) |
Output Power: |
DC: 60kW AC: 22kW |
Output Rating: |
200V-750V DC |

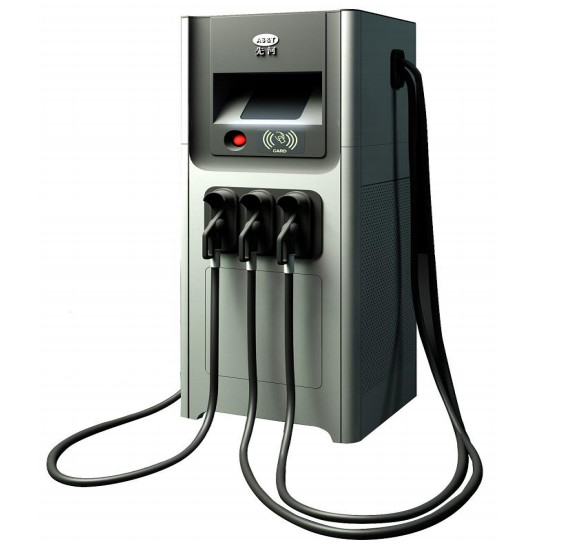

DC Charging Station 60kW with CCS & CHAdeMo & AC Charger Commercial Charge Point
| Item Number 3P60K-AD3-100A-EU01 3P60K-AD3-80A-EU02 | |||
| Power input | Input rating | 400V 3ph 125A max. | 400V 3ph 125A max. |
| Number of phase / wire | 3ph / L1, L2, L3, PE | ||
| Power factor | >0.98 | ||
| Current THD | <5% | ||
| Efficiency | >95% | ||
| Power output | Output power | DC: 60kW AC: 22kW | DC: 60kW AC: 22kW |
| Remark: only one gun is available in a charging session. | |||
| Output rating | 200V-750V DC | 200V-1000V DC | |
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Ov er temperature, Ground fault | |
| User interface & c ontrol | Display | 9” touch screen | |
| Support language | English (Other languages available upon request) | ||
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge b y fee | ||
| Charging interface | CCS2 / CHAdeMO / Control pilot | ||
| User authentication | Paypal and (or) NFC card | ||
| Communication | Network interface | Ethernet (standard); Wi-Fi, 4G (optional) | |
| Open Charge Point Protocal | OCPP1.6 / OCPP2.0 | ||
| Environmental | Operating temperature | minus 20 ℃to+55℃ (derating when over 55℃) | |
| Storage temperature | -40 ℃to+70℃ | ||
| Humidity | < 95% relative humidity, non-condensing | ||
| Altitude | Up to 2000 m (6000 feet) | ||
| Mechanical | Ingress protection | IP54 | |
| Enclosure Protection againstExt ernal Mechanical Impacts |
IK10 according to IEC 62262 | ||
| Cooling | Forced air | ||
| Charging cable length | 5m | ||
| Dimension (W*D*H) mm | 700*750*1750 | 700*750*1750 | |
| Weight | 280kg | 300kg | |
| Regulation | Certificate / Compliance | CE / EN 61851-1/-23 | |
