22kW Type 2 EV Charging Cables

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE

Model Number: ANSAG-T2-22kW

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:

22kW Type 2 EV Charging Cables

,

6M Type 2 EV Charging Cables

,

IEC 62196 Type 2 Tethered Charger

Product Name:
Type 2 Ev Charging Cables
Amps:
32A
Voltage:
480V
Connector Standard:
Type 2 Open End Cables
Length:
6M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
3phase
Product Name:
Type 2 Ev Charging Cables
Amps:
32A
Voltage:
480V
Connector Standard:
Type 2 Open End Cables
Length:
6M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
3phase

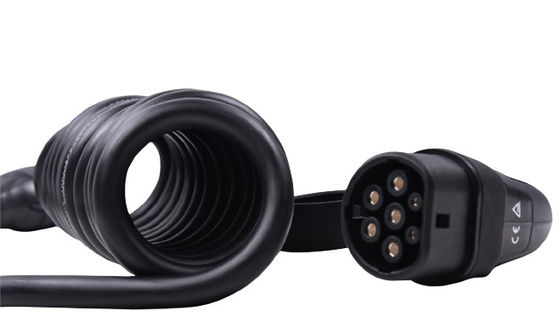

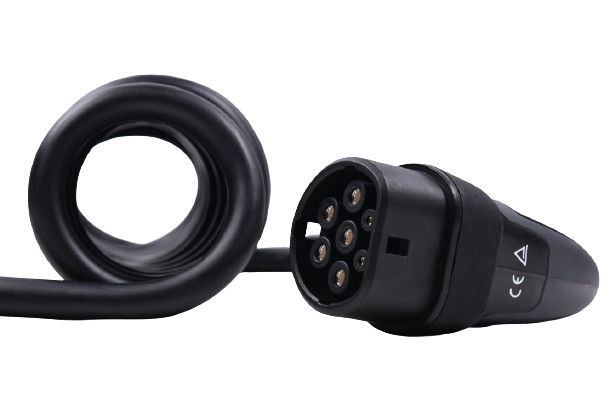

22kW Type 2 EV Charging Cables

Tethered EV Cables IEC 62196 32A 480V 3phase 22kW with 6M Coliled Cables Type 2 EV Charging Cables with Open end



Product Features

  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

Applied Materials

  • Shell material: thermoplastics, flame retardant grade UL94-0
  • Operating temperature: -30°C~ +50°C
ProductModel:ANSAG-T2-32A
Product TypeType 2 ev charging cable
Stardard:IEC 62196-2
Rated Voltage:AC 480V

Rated Current:16

A
Withstanding voltage:2000V
Working temperature:-30℃ to +65℃
StorageTemperature:-40℃ to +70℃
Terminal temperature rise:<50K
Contact impedance:0.5mMax
Protection level:IP67

Certifications:

TUV CE
Warranty:2 years
Plug Colour:Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:No-load plug in/pull out>10000 times
Insertion and Extration Force:45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure



Part nameMaterialSupplier
CablePUR (TPU)HUNTSMAN: A85P4380
Shell of plugPC+PBTSABIC:V3900WX
Head of plugPA66+GF25DUPONT: FR50
