Name: 480V 3 Phase 22kw EV Charge Cable Type 2 Fast Charging Female Plug
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-T2-22kW
Price: 85.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-T2-22kW
MOQ:	1pc
Price:	USD
Packaging Details:	standard exported package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV,CE

Product Name:

IEC 62196 Type 2 Female Plug 32A 480V

Amps:

32A

Voltage:

480V

Power:

22kW

Phase:

3 Phase

Model:

Type 2 EV Charging Plug

Logo:

Support Customzation

Cable Length:

Without Cables

Supply Ability:

1000cs a week

Highlight:

3 Phase EV Charge Cable Type 2

480V 22kw EV Charge Cable Type 2

Type 2 22kw Charger

Product Description

Easy Assemble Cable Type 2 AC Fast Charging Plug 22kW IEC 62196 Type 2 Female Plug 32A 480V

Rated Current:	32A
Operating Voltage	AC 480V
Insulation Resisitance	>1000MΩ(DC500V)
Withstand Voltage	2500V
Contact Pin	Copper alloy, Silver
Working temperature	-30°C ~+50°C
Flame Retardant Grade	UL94 V-0
Contact Resistance:	0.5mΩ Max

Waterproof	IP54
Certificate	CE,TUV Approved

Features:

Meet IE 62196-2010 standard
Excellent protection performance,protection grade IP54(working condition)
Nice appearance,hand-held ergonomic design, easy plug

Mechanical properties

Mechanical life : no-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N

Environmental performance
Operating temperature:-30℃~+50°C

Electrical Performance

Rated current : 32A
Operation voltage: 250V
lnsulation resistance: >1000MQ(DC50Ov)
Terminall temperature rise :<50K
withstand voltage : 2000V

Applied Materials

Case Material: Thermoplastic,flame retardant grade UL94v-o
Contact Resistance:0.5mQ Max
Contact bush: Copper alloy,silver plating

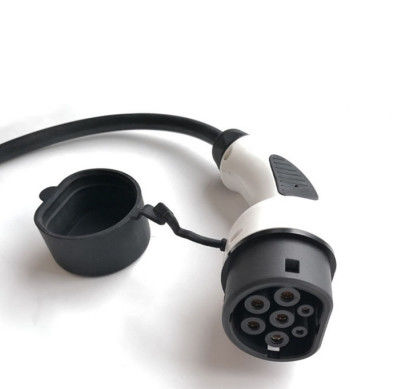

480V 3 Phase 22kw EV Charge Cable Type 2 Fast Charging Female Plug 0

Certification: TUV,CE

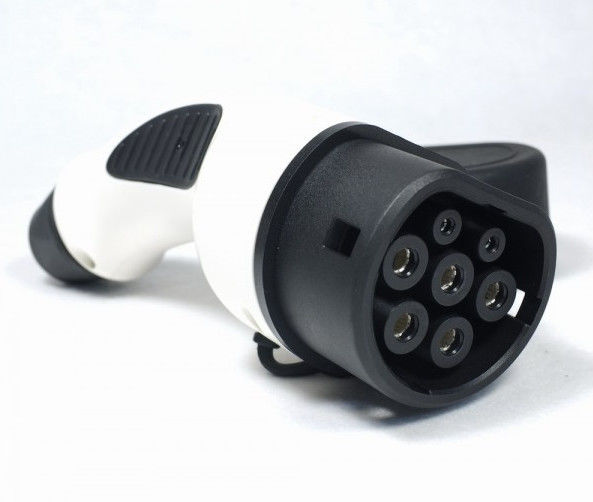

480V 3 Phase 22kw EV Charge Cable Type 2 Fast Charging Female Plug 1
