Product Details
Place of Origin: china
Brand Name: ANS
Certification: TUV
Model Number: ANSYH-CHAdeMo-125A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
CHAdeMo EV Charging |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
125A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Operating Temperature:: |
-30℃-+50℃ |
Product Name: |
CHAdeMo EV Charging |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
125A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Operating Temperature:: |
-30℃-+50℃ |

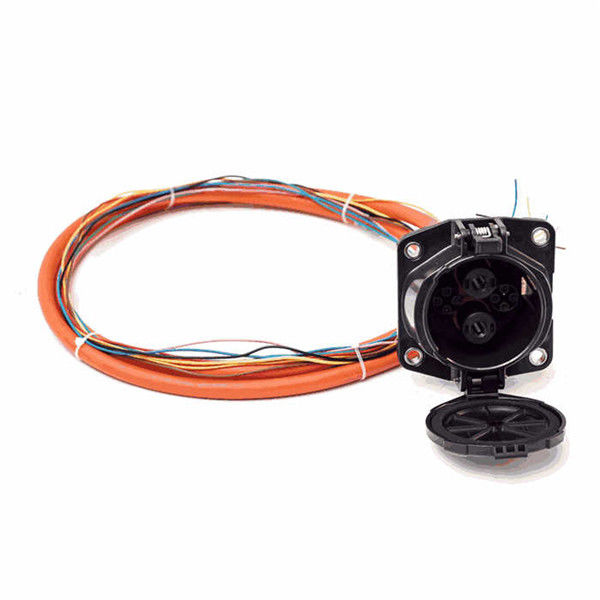

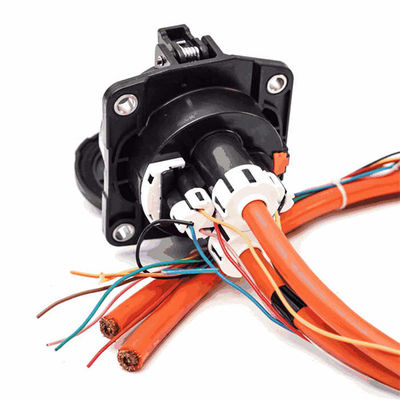

125A DC Quick charger Inlet (JEVS G 105 / CHAdeMO) – 1m 40mm² Cap left – unscreened CHAdeMo EV Charging
Product Description
Rated Current:
|
80A/125A/150A/200A
|
||
Operating Voltage
|
DC1000V
|
||
Insulation Resisitance
|
>1000MΩ(DC500V)
|
||
Withstand Voltage
|
3200V
|
||
Contact Pin
|
Copper alloy, Silver plating
|
||
Working temperature
|
-60°C ~+45°C
|
||
Flame Retardant Grade
|
UL94 V-0
|
||
Contact Resistance
|
0.5mΩ Max
|
Waterproof
|
IP55
|
||
Certificate
|
CE, TUV Approved
|
Product Detail
Feature of CHAdeMo EV Charging
Description
Rated voltage 500V DC
Rated current 125A
Two-pole POWER 2, SIGNAL 7
Ambient temperature -40° to +60
Rated mating cycle. 10,000
Mounting provisions: holes for M6 fasteners (4 places)
1.Meet the electric vehicle conductive charging connection device 20110530 Technical standards and requirements;
2.Nice shape, hand-held ergonomic design, easy to use;
3.Protection class: IP55(in mated conditions);
4.Reliability of materials, antiflaming, environmental protection, abrasion resisitance, impact resistance, oil resistance and Anti-UV
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
