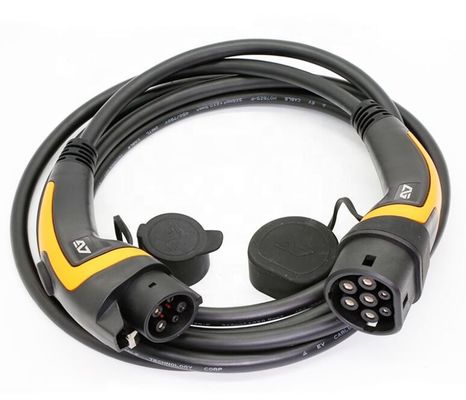

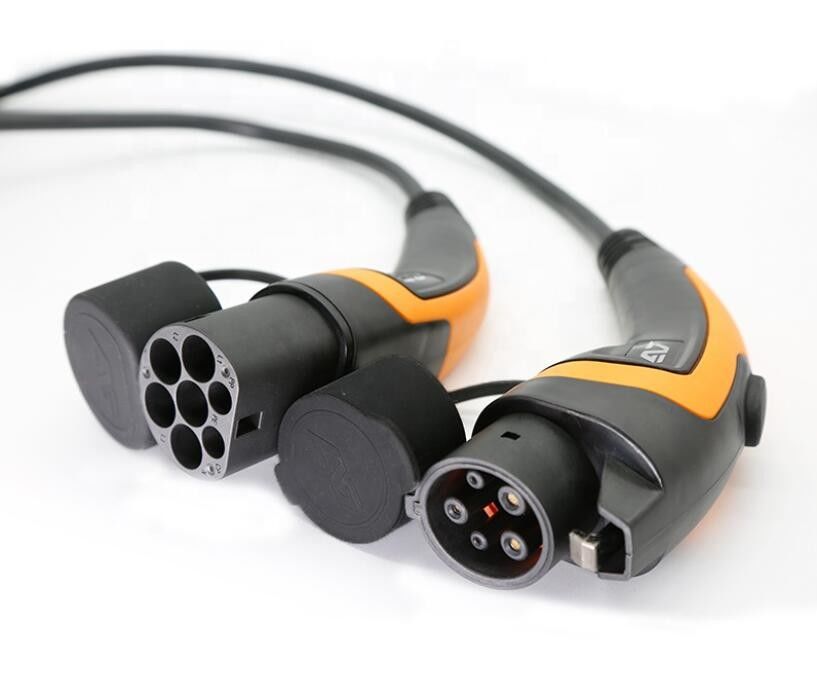

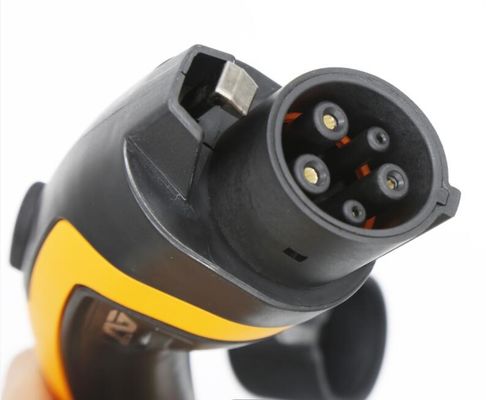

Type 1 To Type 2 5m Electric Vehicle Charging Cord With IEC 62196 Type 2 Connector

Brand Name:	ANS
Model Number:	ANSAG-T1-T2-32A
MOQ:	1pcs
Price:	USD
Packaging Details:	standards export package
Payment Terms:	L/C, D/A, T/T, D/P, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV,CE,RoHs, REACH

Product Name:

Type 1 To Type 2 EV Charging Cables

Amps:

Voltage:

Connector Standard:

Mode 3 EV Charging Cables

Length:

Materials:

Huntsman

Plug Standard:

IEC 62196 SAE J772

Grounding:

Standard Grounding

Warranty:

24 Months

Phase:

1phase

Supply Ability:

1000pcs one day

Highlight:

REACH Electric Vehicle Charging Cord

5m Electric Vehicle Charging Cord

Type1 To Type2 32A EV Charger

Product Description

EV Charging Plug SAE J772 to IEC 62196 Type 2 32A 250V Type 1 to Type 2 EV Charging Cables

Product Features

Conform to the provisions and requirements of IEC 62196-2 2016 2-lle,SAE J1772
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Developed and produced based on IATF 16949 and ISO9001 standards
injection molded with waterproof IP55, it can use in the raining.

ProductModel:ANSAG-T1-T2-32A
Product TypeType 2 to Type 2 ev charging cable
Stardard:IEC 62196-2
Rated Voltage:AC250V
Rated Current:
32A
Withstanding voltage:2000V
Working temperature:-30℃ to +65℃
StorageTemperature:-40℃ to +70℃
Terminal temperature rise:<50K
Contact impedance:0.5mMax
Protection level:IP67
Certifications:
TUV CE
Warranty:2 years
Plug Colour:Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:No-load plug in/pull out>10000 times
Insertion and Extration Force:45N<F<100N
Impato fex ternal force:
Can afford 1m drop and 2T vehicle run over pressure

Part nameMaterialSupplier
CablePUR (TPU)HUNTSMAN: A85P4380
Shell of plugPC+PBTSABIC:V3900WX
Head of plugPA66+GF25DUPONT: FR50



Factory

Applied Materials
Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

Type 1 To Type 2 5m Electric Vehicle Charging Cord With IEC 62196 Type 2 Connector 4
