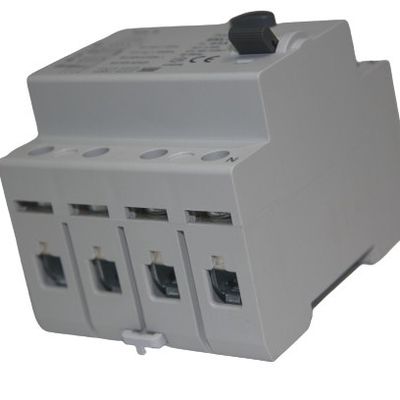

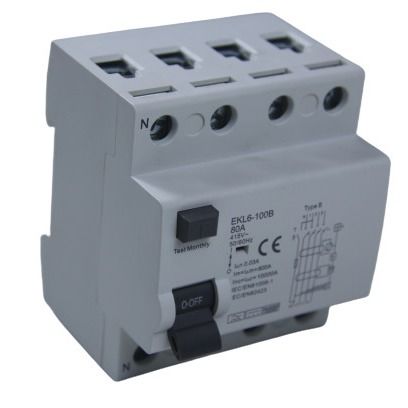

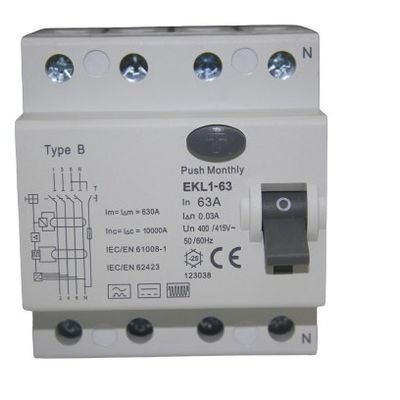

10KA Type B 63A RCD Circuit Breaker For Leackage Protection

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV/CE/UL/RoHS/REACH

Model Number: EKL1-63B 10KA B type RCCB

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD10-USD70

Packaging Details: Carton box. Carton size: 43*43*21cm

Delivery Time: 10-30days

Payment Terms: T/T, Western Union,Paypal, L/C

Supply Ability: 600pcs/day

Get Best Price
Highlight:

63A RCD Circuit Breaker

,

Type B RCD Circuit Breaker

,

10KA Residual Current Circuit Breaker

Contact Position Indicator:
Yes
Protection Degree:
IP20
Ambient Temperature(withdailyaverage≤35℃):
-5℃~+40℃
Certification:
CE/TUV
OEM Branding:
Yes
Contact Position Indicator:
Yes
Protection Degree:
IP20
Ambient Temperature(withdailyaverage≤35℃):
-5℃~+40℃
Certification:
CE/TUV
OEM Branding:
Yes
10KA Type B 63A RCD Circuit Breaker For Leackage Protection

Residual Current Circuit Breaker leackage protection rcd circuit breaker RCCB/RCD Type B 40A AC 30mA DC6mA


Technical Data:

10KA Type B 63A RCD Circuit Breaker For Leackage Protection 0



Mode Electromagnetic

Type(wave form of the earth leakage sensed):

B
Rated current In
25,40,63A
Poles
4P
Rated voltage
4P 415V~
Insulation voltage Ui
500V
Rated frequency
50/60Hz
Rated residual operation current(I△n)
30mA
Rated residual making and breaking capacity (I△m)
500(In=2540A) 630(In=63A)
Short-circuit current Inc= I△c
10,000A
Break time under I△n
≤0.1s
Rated impulse withstand voltage(1.5/50) Uimp
4000V
Dielectric test voltage at ind.Freq. for 1min
2.5kV
Electrical life
2,000 Cycles
Mechanical life
4,000 Cycles





Installation:

  • Contact position indicator: Yes
  • Protection degree: IP20
  • Ambient temperature(with daily average≤35℃): -5℃~+40℃
  • Storage temperature: -25℃~+70℃
  • Terminal connection type: Cable/Pin-type busbar/U-type busbar
  • Terminal size top/bottom for cable: 25mm  18-3AWG
  • Mounting: On DIN rail EN60715(35mm) by means of fast clip device
  • Connection: From top and bottom
  • Tightening torque: 2.5Nm  22In-lbs





Why Us:

  • CE/TUV/UL/RoHs listed
  • ISO9001:2015; IATF16949:2016
  • 1 years warranty--any complaint on quality, we will send new replacement without hesitation
  • OEM/ODM supportable--Supporting customization for your exclusive branding,like color,brand,cable length etc
  • Rich experience with many cooperated customers on EU market. Products have been well examined
