Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV, CE
Model Number: ANS-DCT-150kW
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: standard export package
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs one day
Name: |
DC Charging Station |
Charging Interface: |
CCS 1 Or CCS 2 Or GB/T |
Charge Point Protocal: |
OCPP1.6 / OCPP2.0 |
Enclosure Protection AgainstExt Ernal Mechanical Impacts: |
IK10 According To IEC 62262 |
User Authentication: |
Paypal And (or) NFC Card |
Network Interface: |
Ethernet (standard); Wi-Fi, 4G (optional) |
Display: |
7” Touch Screen |
Support Language: |
English (Other Languages Available Upon Request) |
Output Power: |
150kW |
Output Rating: |
200V-750V DC |
Name: |
DC Charging Station |
Charging Interface: |
CCS 1 Or CCS 2 Or GB/T |
Charge Point Protocal: |
OCPP1.6 / OCPP2.0 |
Enclosure Protection AgainstExt Ernal Mechanical Impacts: |
IK10 According To IEC 62262 |
User Authentication: |
Paypal And (or) NFC Card |
Network Interface: |
Ethernet (standard); Wi-Fi, 4G (optional) |
Display: |
7” Touch Screen |
Support Language: |
English (Other Languages Available Upon Request) |
Output Power: |
150kW |
Output Rating: |
200V-750V DC |

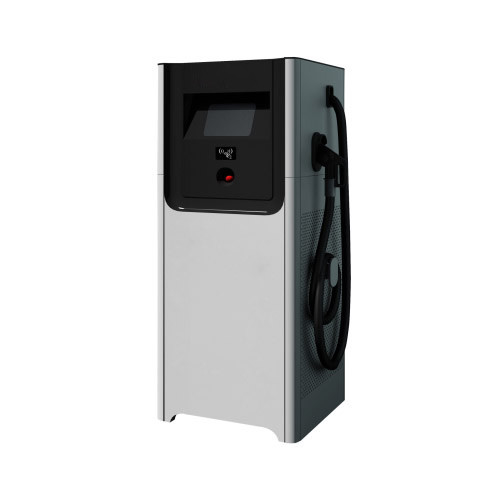

Commercial Charge Point 150kW with CCS Charger DC Charging Station OCPP 4G WIFI
| model | 3P60K-D1-100A-EU01 | 3P90K-D1-150A-EU01 | 3P120K-D1-200A-EU01 | 3P150K-D1-200A-EU01 | |
|---|---|---|---|---|---|
| enter | Input rated voltage and current | 400V 3ph 125A max. | 400V 3ph 160A max. | 400V 3ph 200A max. | 400V 3ph 320A max. |
| number of input lines | 3ph / L1, L2, L3, PE | ||||
| power factor | >0.98 | ||||
| current total harmonics | <5% | ||||
| efficiency | >95% | ||||
| output | Output rated power | 60kW | 90kW | 120kW | 150kW |
| The output voltage | 200V-750V DC | ||||
| Protect | Protection method | Overcurrent, undervoltage, overvoltage, residual current, lightning protection, short circuit, overtemperature, ground fault | |||
| User Interface and Control | show | 7” touch screen | |||
| Supported languages | English and other languages (based on need) | ||||
| charging options | Auto recharge, time based, energy based, cost based | ||||
| charging interface | GB or CCS1/2 | ||||
| User authentication method | RFID / NFC / QR code (two-dimensional code) | ||||
| communication | Communication method | Ethernet (standard); Wi-Fi, 4G (optional) | |||
| OCPP Compliant | OCPP1.6 / OCPP2.0 | ||||
| environment | Operating temperature | -20°C to +55°C (Derating over 55°C) | |||
| Storage temperature | -40°C to +70°C | ||||
| humidity | < 95% RH, non-condensing | ||||
| altitude | up to 2000 m (6000 feet) | ||||
| mechanical | Protection class | IP54 | |||
| Shell shock resistance rating | IK10 according to IEC 62262 | ||||
| cooling method | forced air cooling | ||||
| Charging cable length | 7m | ||||
| Dimensions (W*D*H) mm | 650*700*1500 | 650*700*1500 | 650*700*1800 | 650*700*1800 | |
| weight | 320kg | 340kg | 460kg | 480kg | |
| rule | Certification / Compliance | CE / EN 61851-1/-23 / GB 18487.1, GB/T 27930, NB/T 33001, NB/T 33008.1 | |||
