Product Details
Place of Origin: China
Brand Name: ANS
Certification: 3C
Model Number: ANS-GB-16A
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: standard export package
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs a week
Product Name: |
GB/T EV Charging Cables |
Amps: |
32A |
Voltage: |
250V |
Cables Size: |
2.5mm2 |
Color: |
Green，blue ，orange ，grey |
Cable Length: |
5M Cable Length Or Based On Requirement |
Logo: |
Support Customzation |
Product Name: |
GB/T EV Charging Cables |
Amps: |
32A |
Voltage: |
250V |
Cables Size: |
2.5mm2 |
Color: |
Green，blue ，orange ，grey |
Cable Length: |
5M Cable Length Or Based On Requirement |
Logo: |
Support Customzation |

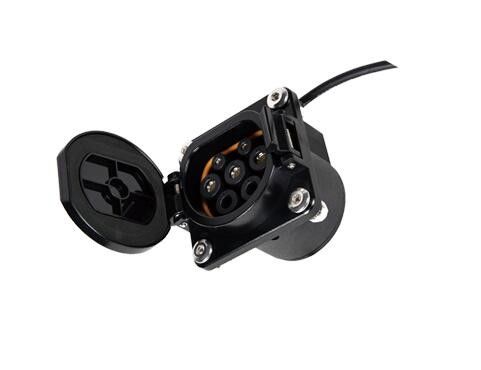

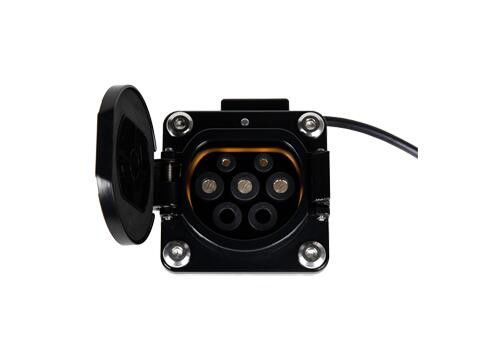

GB/T Standard EV AC Charging Sockets 16A 250V EV Connector Sockets
Features
Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/ T 20234.2-2015.
Have a electromagnetic locking device (can match with hela lock), have functions of signal feedback.
Have one or two PTC (PT1000) thermistor (can match with hela lock), have functions of signal feedback.
Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, presssure proof, wear-resisting , impact resistance, high oil proof .
Excellent protection performance, prodection grade achieved IP55 (working condition)
| rated current | 16A |
| rated voltage | 250V |
| Insulation resistance | >1000M Ω |
| Pins temperature rise | < 50K |
| Withstand voltage | 2500V |
| Contact impedance | 0.5m Ω Max |
| Shell material | thermoplastics,lame retardant grade UL94 |
| Pin | copper alloy,silver-plate and use thermoplastic at the top |
| Envirommental perommance | -30℃- +50℃ |
| cables size | 3*2.5+2*0.5mm2 |
Certification: IATF 16949,3C
