Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANS-PT2AC7kW
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD300-500
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 600pcs/day
Product Name: |
Ev Charging Stations |
Connector Type: |
IEC62196 Type 2/SAE J1772 |
Rated Current: |
32A |
Rated Voltage: |
250V |
Rated Power: |
7kW |
Charging Control: |
Plug And Charge, Start/stop Touch Button, RFID Card Or Mobile APP |
Rated Frequency: |
50/60Hz |
RCD: |
AC30mA+DC 6mA |
Product Name: |
Ev Charging Stations |
Connector Type: |
IEC62196 Type 2/SAE J1772 |
Rated Current: |
32A |
Rated Voltage: |
250V |
Rated Power: |
7kW |
Charging Control: |
Plug And Charge, Start/stop Touch Button, RFID Card Or Mobile APP |
Rated Frequency: |
50/60Hz |
RCD: |
AC30mA+DC 6mA |
Commercial used Type B protection DC6mA single phase 7kW ev charging stations
Features:
7kW smart wallbox, ideal choice for home charging: smart, safe and simple.
AC 30mA+DC 6mA RCD Inside
IP55 Protection
Remote schedule the charging
LCD Display
Power Specification
| Model Number | H2 |
| AC Power Input Rating | 230VAC(1-Phase) |
| Rated Frequency | 50/60Hz |
| Output Current | 32A |
| Output Power | 7kW |
| Connector | Type 5m charge cable or custimized |
| IP Code | IP55 |
| Leakage Protection | AC 30mA+DC 6mA |
| Electrical Protection | Over/Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Ground Protection, Over-temp Protection, Surge Protection |
User Interface&Control
Charging Control: Plug and Charge, Start&stop touch button, RFID Card or Mobile APP
LCD Display: 4.3’‘(optional)
Internet Connection: Wi-Fi (LAN optional)
External Communication: RS485
OCPP Protocol(optional): OCPP 1.6

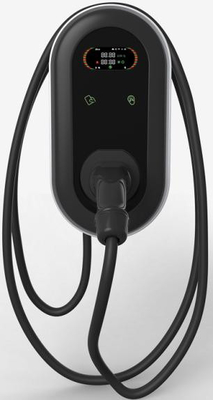

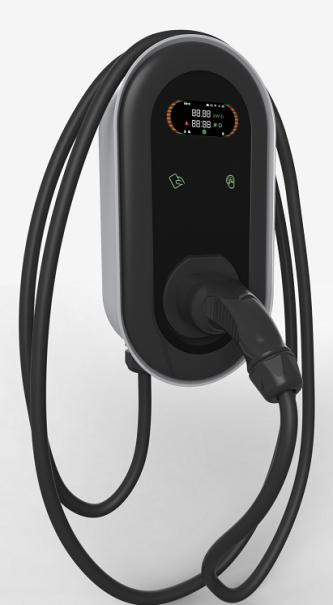

Product pictures
