Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANS-PT2AC22kW
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD300-500
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 600pcs/day
Product Name: |
Ev Charging Stations |
Cable Length: |
5M Or Customized |
Rated Current: |
32A |
Rated Power: |
22kW |
Rated Voltage: |
480V |
Rated Frequency: |
50/60Hz |
Charging Control: |
Plug And Charge, Start/stop Touch Button, RFID Card Or Mobile APP |
Connector Type: |
IEC62196 Type 2 |
External Communication: |
RS485 |
Product Name: |
Ev Charging Stations |
Cable Length: |
5M Or Customized |
Rated Current: |
32A |
Rated Power: |
22kW |
Rated Voltage: |
480V |
Rated Frequency: |
50/60Hz |
Charging Control: |
Plug And Charge, Start/stop Touch Button, RFID Card Or Mobile APP |
Connector Type: |
IEC62196 Type 2 |
External Communication: |
RS485 |
Intelligent Commercial OCPP2.0 22kW 32A 3phase Type 2 Ev Charging Stations
Features:
11/22kW Multipurpose Wallbox, intelligent and flexible for various applications: fleets, retail, workplace
RFID, mobile APP, plug & charge.
More precise metering, comply with the most demanding billing requirements.
A variety of communication interfaces ensure the charger can be connected to the background system.
The 3.5 inch screen display the charger status, charging power, etc.
Power Specification
Model Number:H2
AC Power Input Rating: 380VAC(3-Phase)
Rated Frequency: 50/60Hz
Output Current: 32A/16A
Output Power: 22kW/11kW
Connector: Type 5m charge cable
Protection
IP Code: IP55
Leakage Protection: AC 30mA+DC 6mA
Electrical Protection: Over/Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Ground Protection, Over-temp Protection, Surge Protection
User Interface&Control
| Charging Control | Plug and Charge, Start&stop touch button, RFID Card or Mobile APP |
| LCD Display | 4.3’‘(optional) |
| Internet Connection | Wi-Fi (LAN optional) |
| External Communication | RS485 |
| OCPP Protocol(optional) |
OCPP 1.6 |

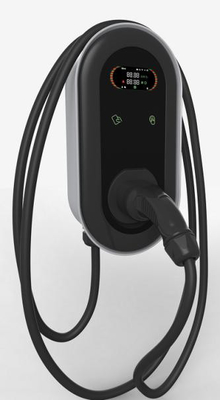

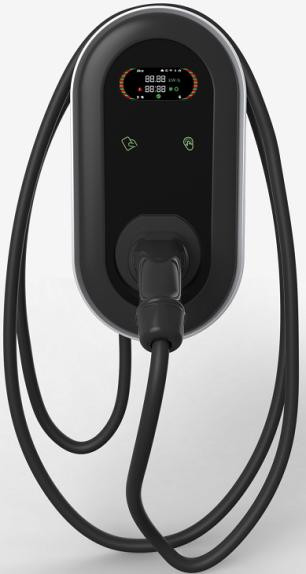

Product pictures
