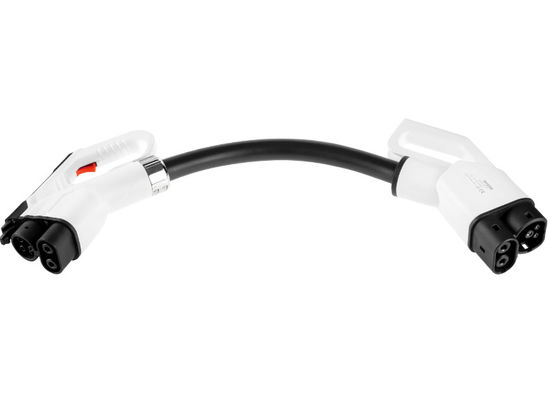

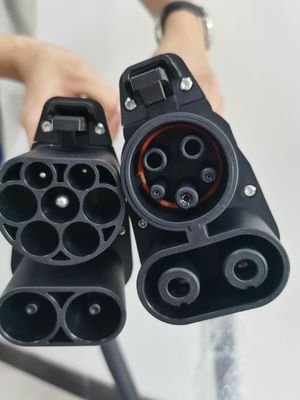

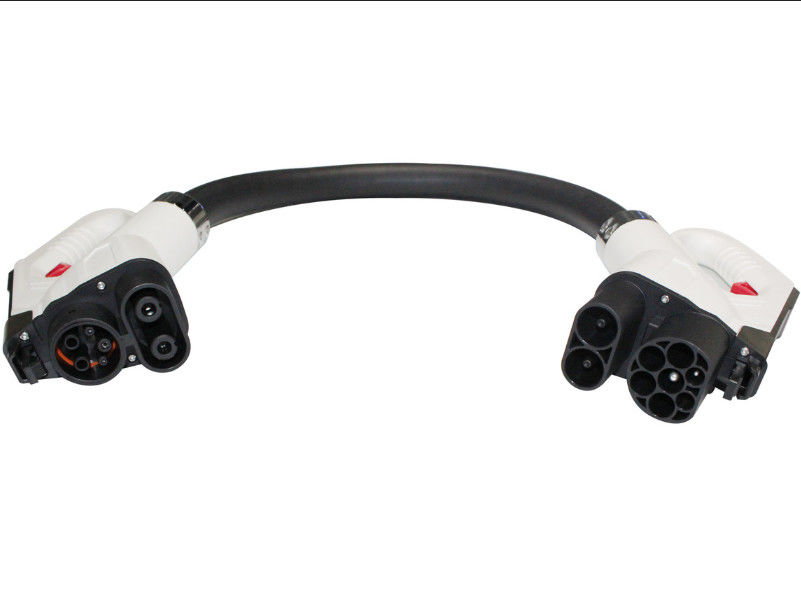

CCS Combo1 charger plug to CCS Combo2 car socket/CCS1 CCS2 adapter
The ANS-CCS1-2-ADAP adapter is always used to charge a CCS 1 socket integrated car on a CCS 2 charging station.
1.Meet the electric vehicle conductive charging connection device'62196-3 IEC 2011 SHEET 3-Lj Technical standards and requirements
2.Nice shape, With dustproof protective cover Easy to open and close
3.Protection class IP55 in mated conditions
4.Reliability of materials,antiflaming ,environmental protection ,abrasion resistance,impact resistance,oil resistance and Anti-UV
Electric Performance:
| Rated current | 150A |
| Operating voltage | 1000V DC |
| Insulation resistance | >2000MΩ (DC1000V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 3200V |
| Vibration resistance | Meet JDQ 53.3 requirements |
| Contact impedance | 0.5MΩ Max |
Specification:
Current:150Amp
DC max charging power:90KW
AC max charging power: 41.5KW
Applied Materials
Case Material: Thermoplastic,flame retardant grade UL94 V-0
Contact bush: Copper alloy, silver plating
Product entire insertion and extraction force < 100N
Protection class: IP55
Max charging power:127.5KW
Drawings
Application
This CCS2 to CCS 1 charging adapter PP is disconnected. Please check more details for which version is compatible for which car:
| Vehicle Model | Adapter with PP disconnect | Adapter with PP connected |
|
Chevrolet Bolt EV |
Yes | |
|
Audi e-tron 2020 |
Yes | |
|
KIA e-soul |
Yes | |
|
E-golf 2016 |
Yes | |
|
BMW i3 |
Yes | |
|
i-Pace |
Yes | |
|
Kona |
Yes | |
|
e-golf 2015 |
Yes | |
|
E-Focus 2017 |
Yes | |
|
BYD |
Yes | |
|
E-golf 2019 |
Yes |
